Human Spaceflights

International Flight No. 27

Soyuz 4

Amur

USSR

USSR
Patch Soyuz 4 Patch Zvezda diamond

hi res version (422 KB)



Launch, orbit and landing data

Launch date:  14.01.1969
Launch time:  07:30:00.12 UTC
Launch site:  Baikonur
Launch pad:  31
Altitude:  213 - 225.3 km
Inclination:  51.66°
Docking Soyuz 5:  16.01.1969, 08:20 UTC
Undocking Soyuz 5:  16.01.1969, 12:55 UTC
Landing date:  17.01.1969
Landing time:  06:50:47 UTC
Landing site:  49°58' N, 72°39' E
Vladimir Shatalov

Crew

No.   Surname Given names Position Flight No. Duration Orbits
1  Shatalov  Vladimir Aleksandrovich  Commander 1 2d 23h 20m 47s  48

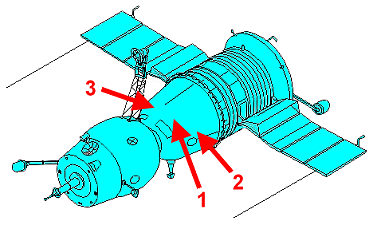

Crew seating arrangement

Launch
1  Shatalov
2
3
Soyuz spacecraft
Landing
1  Shatalov
2  Khrunov
3  Yeliseyev

1st Backup Crew

No.   Surname Given names Position
1  Shonin  Georgi Stepanovich  Commander
Georgi Shonin

2nd Backup Crew

No.   Surname Given names Position
1  Dobrovolsky  Georgi Timofeyevich  Commander
Georgi Dobrovolsky

Hardware

Launch vehicle:  Soyuz (No. Ya15000-12)
Spacecraft:  Soyuz 4 (7K-OK No. 12)

Flight

Launch from the Baikonur Cosmodrome and landing 40 km northwest of Karaganda.

The planned launch on January 13, 1969 was scrubbed due of bad weather. This was the first time in Soviet space history.

Soyuz 4 successfully lifted off from Launch Complex 31. 24 hours later it was followed by Soyuz 5 from Launch Complex 1. After the problems with Soyuz 3, a first-revolution docking was not planned. Instead the automatic rendezvous began on January 16, 1969 at 13:37 UTC on the 34th revolution of Soyuz 4 and the 18th revolution of Soyuz 5. At 100 m distance Vladimir Shatalov took over manual control of Soyuz 4 and guided the spacecraft to an accurate docking on the first attempt at 14:20 UTC.

The spacecraft docked with Soyuz 5 (Soyuz 4 had the active part). The two spacecrafts were electrical and mechanically connected, but there was no direct way from one spacecraft to the other. It was the first docking of manned spacecrafts. The Soyuz 5 cosmonauts Yevgeni Khrunov and Aleksei Yeliseyev entered the Soyuz 4, in a spacewalk on January 16, 1969 (37m). Yevgeni Khrunov and Aleksei Yeliseyev put on their Yastreb ("hawk") suits in the Soyuz 5 orbital module with aid from Commander Boris Volynov. Yastreb suit design commenced in 1965, shortly after Aleksei Leonov’s difficult EVA. Aleksei Leonov served as consultant for the design process, which was completed during 1966. Suit fabrication and testing occurred in 1967, but the fatal Soyuz 1 accident in April of that year and docking difficulties on the joint Soyuz 2-Soyuz 3 mission delayed its use in space until Soyuz 4-Soyuz 5. To prevent the suit ballooning, Yastreb featured a pulley-and-cable articulation system. Wide metal rings around the gray nylon canvas undersuit's upper arms served as anchors for the upper body articulation system. Yastreb had a regenerative life support system in a rectangular white metal box placed on the chest and abdomen to facilitate movement through Soyuz hatchways. Boris Volynov checked out Yevgeni Khrunov and Aleksei Yeliseyev’s life support and communications systems before returning to the descent module, sealing the hatch, and depressurizing the orbital module.

Yevgeni Khrunov and Aleksei Yeliseyev aboard Soyuz 5 immediately began preparing for their EVA. On the 35th revolution of the earth Yevgeni Khrunov exited into free space and began moving toward Soyuz 4. But one of his lines became tangled and he accidentally closed the tumbler of his suit ventilator. He quickly untied this, but the incident distracted Aleksei Yeliseyev, who forgot to mount a movie camera on the divan of the orbital module before exiting the spacecraft. This deprived the world of the planned film of the spacewalk. A poor-quality video transmission was the only record of the EVA (0h 37m).
Yevgeni Khrunov was transferring to the Soyuz 4 orbital module while the docked spacecraft were out of radio contact with the Soviet Union over South America. Aleksei Yeliseyev transferred while the spacecraft were over the Soviet Union.

After pressurization of the Soyuz 4 capsule they were greeted by Vladimir Shatalov. The spacewalkers delivered newspapers, letters, and telegrams printed after Vladimir Shatalov lifted off to help prove that the transfer took place.

All three cosmonauts landed with the Soyuz 4 spacecraft. Scientific (medical and biological) and technical experiments were also performed, but all in all it were tests of lunar landing techniques. The mission proved it was possible to perform the activities that would be needed on a Soviet lunar landing. The Russian plan called for a lone cosmonaut to land on the moon, return to lunar orbit, then make a spacewalk back from the landing craft to orbiting spacecraft after docking. This was because there was no internal tunnel between the two craft as found on the American Apollo CSM and LM.

The Soyuz spacecraft is composed of three elements attached end-to-end - the Orbital Module, the Descent Module and the Instrumentation/Propulsion Module. The crew occupied the central element, the Descent Module. The other two modules are jettisoned prior to re-entry. They burn up in the atmosphere, so only the Descent Module returned to Earth.
The deorbit burn lasted 188 seconds. Having shed two-thirds of its mass, the Soyuz reached Entry Interface - a point 400,000 feet (121.9 kilometers) above the Earth, where friction due to the thickening atmosphere began to heat its outer surfaces. With only 23 minutes left before it lands on the grassy plains of central Asia, attention in the module turned to slowing its rate of descent.
Eight minutes later, the spacecraft was streaking through the sky at a rate of 755 feet (230 meters) per second. Before it touched down, its speed slowed to only 5 feet (1.5 meter) per second, and it lands at an even lower speed than that. Several onboard features ensure that the vehicle and crew land safely and in relative comfort.
Four parachutes, deployed 15 minutes before landing, dramatically slowed the vehicle's rate of descent. Two pilot parachutes were the first to be released, and a drogue chute attached to the second one followed immediately after. The drogue, measuring 24 square meters (258 square feet) in area, slowed the rate of descent from 755 feet (230 meters) per second to 262 feet (80 meters) per second.
The main parachute was the last to emerge. It is the largest chute, with a surface area of 10,764 square feet (1,000 square meters). Its harnesses shifted the vehicle's attitude to a 30-degree angle relative to the ground, dissipating heat, and then shifted it again to a straight vertical descent prior to landing.
The main chute slowed the Soyuz to a descent rate of only 24 feet (7.3 meters) per second, which is still too fast for a comfortable landing. One second before touchdown, two sets of three small engines on the bottom of the vehicle fired, slowing the vehicle to soften the landing.
The landing was 40 km far from the planned point.

The crew were to meet Leonid Brezhnev during a lavish ceremony at the Kremlin, but this was ruined by an attempted assassination of the Soviet leader. A man shot eight times at the motorcade but aimed at the car containing Georgi Beregovoy, Aleksei Leonov, Andriyan Nikolayev, and Valentina Tereshkova. They were unharmed but Brezhnev's car was forced to speed away past the waiting Soyuz 4 and Soyuz 5 crews on the podium.

EVA data

  Name Start End Duration Mission Airlock Suit
EVA Khrunov, Yevgeni 16.01.1969, 10:5? UTC 16.01.1969, 11:4? UTC 0h 37m Soyuz 5 / 4   Yastreb
EVA Yeliseyev, Aleksei 16.01.1969, 10:5? UTC 16.01.1969, 11:4? UTC 0h 37m Soyuz 5 / 4   Yastreb


Photos / Graphics

Soyuz 4 Soyuz 5
Soyuz 4 and Soyuz 5
Crews Soyuz 4 and Soyuz 5 in training Crews Soyuz 4 and Soyuz 5 in training
Soyuz 4 launch Soyuz 4 launch
Soyuz 4 and 5 prior to docking Shatalov inflight
Soyuz 4 onboard after EVA Soyuz 5 brought actual newspapers
Spacewalkers Yeliseyev and Khrunov Shatalov explains the docking of Soyuz 4 and 5

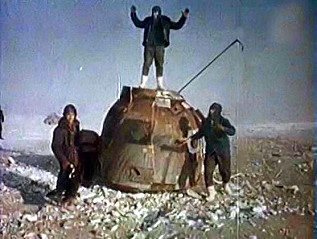

Soyuz 4 recovery Soyuz 4 recovery

©
