Human Spaceflights

International Flight No. 117

Soyuz TM-6

Soyuz TM-5

Proton

USSR

USSR
Patch Soyuz TM-6

hi res version (286 KB)

Launch, orbit and landing data

Launch date:  29.08.1988
Launch time:  04:23:10.888 UTC
Launch site:  Baikonur
Launch pad:  1
Altitude:  350 km
Inclination:  51.6°
Docking Mir:  31.08.1988, 05:40:44 UTC
Undocking Mir (Crew):  05.09.1988, 23:54:57 UTC
Landing date (Crew):  07.09.1988
Landing time (Crew):  00:49:38 UTC
Landing site (Crew):  47°20' N, 69°40' E
Undocking Mir (Soyuz TM-6):  21.12.1988, 02:32:54 UTC
Landing date (Soyuz TM-6):  21.12.1988
Landing time (Soyuz TM-6):  09:56:40 UTC
Landing site (Soyuz TM-6):  48°08' N, 69°55' E

walkout photo

Crew Soyuz TM-6

hi res version (409 KB)

alternative crew photo

alternative crew photo

alternative crew photo

alternative crew photo

alternative crew photo

alternative crew photo

Crew

No.   Surname Given names Position Flight No. Duration Orbits
1  Lyakhov  Vladimir Afanasiyevich  Commander 3 8d 20h 26m 27s  141
2  Polyakov  Valeri Vladimirovich  Research Doctor 1 240d 22h 34m 47s  3812
3  Momand  Abdulahad "Abdulah"  Research Cosmonaut 1 8d 20h 26m 27s  141

Crew seating arrangement

Launch
1  Lyakhov
2  Polyakov
3  Momand
Soyuz TM spacecraft
Landing
1  Titov
2  Manarov
3  Chrétien

Backup Crew

No.   Surname Given names Position
1  Berezovoy  Anatoli Nikolayevich  Commander
2  Arzamazov  German Semyonovich  Research Doctor
3  Dauran-Ghulam Masum  Mohammed  Research Cosmonaut
Crew Soyuz TM-6 backup

hi res version (1.25 MB)

alternative crew photo

alternative crew photo

alternative crew photo

Hardware

Launch vehicle:  Soyuz-U2 (No. 19M119S Ye15000-030)
Spacecraft:  Soyuz TM-6 (7K-STM No. 56)

Flight

Launch from the Baikonur Cosmodrome and landing with Soyuz TM-5 spacecraft 156 km southeast of Dzheskasgan. Abdulahad Momand became the first cosmonaut from Afghanistan.

The crew had a unique makeup, with a Commander (Vladimir Lyakhov) who had been trained to fly a Soyuz TM solo in the event a rescue ship needed to be sent to recover two cosmonauts from Mir. Onboard the spacecraft was no flight engineer, but two inexperienced Research Cosmonauts. One was Valeri Polyakov, who remained aboard Mir with Vladimir Titov and Musa Manarov to monitor their health during the final months of their planned year-long stay.

The Soyuz was placed in an initial orbit of 195 x 228 km at 51.57 deg. It then maneuvered to a 235 x 259 km orbit.

Following a two-day solo flight Soyuz TM-6 docked with Mir-Kvant-Soyuz TM-5 on August 31, 1988.

Scientific work with the third resident crew was done. This included Earth observation, materials sciences and medical research (including observation of earthquake regions, searching for mineral resources). Topographic camera Kate 140, the MKS-M spectrometer, the Spektr 256 analysator and a handcamera were used during the Shamshed experiment. Medical experiment included studying of movementproblems in minor gravitation. Valeri Polyakov stayed on board and became member of the third resident crew.

Vladimir Lyakhov and Abdulahad Momand left their fresh spacecraft docked to Mir as a lifeboat and returned aboard Soyuz TM-5

The Soyuz spacecraft is composed of three elements attached end-to-end - the Orbital Module, the Descent Module and the Instrumentation/Propulsion Module. The crew occupied the central element, the Descent Module. The other two modules are jettisoned prior to re-entry. They burn up in the atmosphere, so only the Descent Module returned to Earth.
The deorbit burn lasted about 240 seconds. Having shed two-thirds of its mass, the Soyuz reached Entry Interface - a point 400,000 feet (121.9 kilometers) above the Earth, where friction due to the thickening atmosphere began to heat its outer surfaces. With only 23 minutes left before it lands on the grassy plains of central Asia, attention in the module turned to slowing its rate of descent.
Eight minutes later, the spacecraft was streaking through the sky at a rate of 755 feet (230 meters) per second. Before it touched down, its speed slowed to only 5 feet (1.5 meter) per second, and it lands at an even lower speed than that. Several onboard features ensure that the vehicle and crew land safely and in relative comfort.
Four parachutes, deployed 15 minutes before landing, dramatically slowed the vehicle's rate of descent. Two pilot parachutes were the first to be released, and a drogue chute attached to the second one followed immediately after. The drogue, measuring 24 square meters (258 square feet) in area, slowed the rate of descent from 755 feet (230 meters) per second to 262 feet (80 meters) per second.
The main parachute was the last to emerge. It is the largest chute, with a surface area of 10,764 square feet (1,000 square meters). Its harnesses shifted the vehicle's attitude to a 30-degree angle relative to the ground, dissipating heat, and then shifted it again to a straight vertical descent prior to landing.
The main chute slowed the Soyuz to a descent rate of only 24 feet (7.3 meters) per second, which is still too fast for a comfortable landing. One second before touchdown, two sets of three small engines on the bottom of the vehicle fired, slowing the vehicle to soften the landing.

During descent they suffered a computer software problem combined with a sensor problem. The deorbit engine on the Soyuz TM-5 spacecraft which was to propel them into atmospheric reentry, did not behave as expected. During an attempted burn, the computer shut off the engines prematurely, believing the spacecraft was out of alignment. Vladimir Lyakhov determined that they were not, in fact, out of alignment, and asserted that the problem was caused by conflicting signals picked up by the alignment sensors caused by solar glare. With the problem apparently solved, two orbits later he restarted to deorbit engines. But the engines shut off again. The flight director decided that they would have to remain in orbit an extra day (a full revolution of the Earth), so they could determine what the problem was. During this time, it was realized that during the second attempted engine burn, the computer had tried to execute the program which was used to dock with Mir several months earlier during the stay of the second resident crew. After reprogramming the computer, the next attempt was successful, and the crew safely landed on September 07, 1988.

Note

Valeri Polyakov landed on April 27, 1989 at 02:57:58 UTC with Soyuz TM-7 spacecraft.

Relocations of Manned Spacecrafts

Spacecraft from Undocking Time UTC to Redocking Time UTC
Soyuz TM-6 Mir - Kvant 08.09.1988 01:04:46 Mir - Baseblock 08.09.1988 01:25:00


Photos / Graphics

Mir since 31.03.1987 crew in training
crew in training crew in training
crew in training crew in training
crew in training Momand in training
crew in training crew in training
traidional tree plant in Baikonur

Credit: GTCT

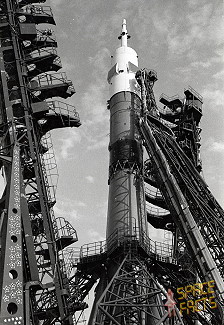

Soyuz TM-6 on launch pad

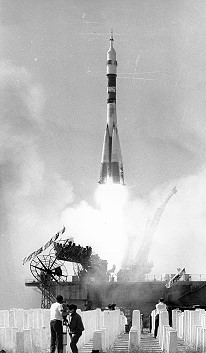

Soyuz TM-6 launch life onboard
Soyuz TM-6 onboard Mir life onboard Mir
life onboard Mir life onboard Mir

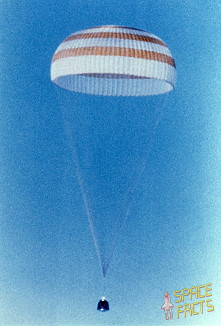

Soyuz TM-6 landing Soyuz TM-6 recovery
Soyuz TM-6 recovery

©
