Resident Crews of the Chinese Space Station Tiangong

Tiangong: Expedition 4

Patch Shenzhou-15 Crew Shenzhou-15

hi res version (681 KB)

hi res version (339 KB)

alternative crew photo

alternative crew photo

Patch Tianzhou-6 Patch Shenzhou-16

hi res version (532 KB)



Crew, launch- and landing data

No. Nation Surname Given names Position Spacecraft
(launch)
Launch
date
Launch
time
Spacecraft
(landing)
Landing
date
Landing
time
Mission
duration
Orbits
1 China  Fei  Junlong  Commander  Shenzhou-15  29.11.2022  15:08:17.457 UTC  Shenzhou-15  03.06.2023  22:33 UTC 186d 07h 24m 43s  2931
2 China  Deng  Qingming  Astronaut  Shenzhou-15  29.11.2022  15:08:17.457 UTC  Shenzhou-15  03.06.2023  22:33 UTC 186d 07h 24m 43s  2931
3 China  Zhang  Lu  Astronaut  Shenzhou-15  29.11.2022  15:08:17.457 UTC  Shenzhou-15  03.06.2023  22:33 UTC 186d 07h 24m 43s  2931
4 China  Jing  Haipeng  Astronaut  Shenzhou-16  30.05.2023  01:31:13.480 UTC  Shenzhou-16  31.10.2023  00:11:32 UTC 153d 22h 40m 19s  2429
5 China  Gui  Haichao  Astronaut  Shenzhou-16  30.05.2023  01:31:13.480 UTC  Shenzhou-16  31.10.2023  00:11:32 UTC 153d 22h 40m 19s  2429
6 China  Zhu  Yangzhu  Astronaut  Shenzhou-16  30.05.2023  01:31:13.480 UTC  Shenzhou-16  31.10.2023  00:11:32 UTC 153d 22h 40m 19s  2429

Backup Crew

No. Nation Surname Given names Position
1 China      Commander
2 China      Astronaut
3 China      Astronaut
4 China      Astronaut
5 China      Astronaut
6 China      Astronaut

Expedition Report

Expedition 4 began with the undocking of Shenzhou-14.

This year, only one Tianzhou cargo spacecraft will be launched to the Chinese space station. Starting from Tianzhou-6, cargo ships have optimized and upgraded the layout of equipment and cargo holds. The improved airtight compartment cargo transport capacity will be further improved. Each launch of a fully sealed cargo ship can deliver for 3 months more food for astronauts. The Tianzhou cargo spacecraft has a maximum take-off mass of 13.5 tons, a maximum uplink cargo mass of 7 tons, and a propellant replenishment capacity of 2.5 tons.

In addition to assembling and unlocking equipment in the laboratory cabinets of the Mengtian science module, the first tasks included, above all, conducting cell biological and botanical experiments with organisms that had been brought to the station with Shenzhou-15 and had a limited lifespan. New vegetables were also sown, which in addition to their function as food supplements also served as decoration.

On January 07, 2023, an energetic particle detector designed and built by the National Center for Space Science was installed on the outer wall of the lock section at the rear of the Wentian Science Module. The cargo lock of the science module Mengtian was used for the first time. The astronauts placed the device in the airlock and grabbed it from the outside with the Wentian science module's small but precise mechanical arm, which was coupled with the Tianhe core module's large arm to form a long arm with a range of 14.5 m. They lifted the detector to the far end of the space station and slid it into its slot. All four measuring modules of the detector (medium-energy protons, medium-energy electrons, neutrons, particles of all kinds) functioned perfectly.

The first spacewalk performed Fei Junlong and Zhang Lu on February 09, 2023 (7h 06m). Deng Qingming assisted the pair from inside the Tianhe core module. Installing the first additional pump block of the thermal control system and attaching the first external platform to the Mengtian module of Tiangong Station
Fei Junlong, who was the first to exit the personnel airlock in the Wentian science module, was carried by the station's two mechanical arms, coupled together to form a long arm, to the deployment site at the Mengtian science module, taking a pump unit to be installed there with him, while Zhang Lu worked on the along the module climbed along.

The second spacewalk performed again Fei Junlong and Zhang Lu on February 28, 2023 (7h 50m). However, no mentioning of the start time and end time. Later it was revealed that they installed an instrument with 20 plugs during their 2nd and most secret spacewalk.

Without spacewalking, a plasma detector was brought out through the cargo hatch and placed in its slot on the Wentian science module. Acquired from the National Center for Space Sciences, the device features a flip-out Langmuir probe to measure electron density and electron temperature and related parameters for ions. With the ion imager, a three-dimensional representation of the ion distribution in the orbit of the space station can be generated. The composition and speed of the plasma as well as the electrical potential, i.e. the electrical charge on the outer wall of the space station, which leads to the erosion of the material in the long term, are measured.
The device will also be used to document the disturbances and changes in the ionosphere at mid and low latitudes in order to improve the model of the area of the ionosphere.

The third spacewalk performed again Fei Junlong and Zhang Lu on March 30, 2023 (~7h 30m). However, no mentioning of the start time and end time. Later it was revealed that they connected inter-module cables.

According to China 'N Asia Spaceflight (https://twitter.com/CNSpaceflight) the Chinese space station Tiangong is so cramped that Shenzhou-15's main tasks were to dump trash bags during spacewalks. Although it's been a normal operation in ISS, China had to keep it secret to avoid worsening its reputation earned by CZ5B reentries & inland falling of rocket stages.

The fourth spacewalk performed again Fei Junlong and Zhang Lu on April 15, 2023 (~7h 30m). However, no mentioning of the start time and end time. Installing the second additional pump block of the thermal control system and attaching the second external platform to the Mengtian module of Tiangong Station

Tianzhou-5 cargo spaceship separated from Tiangong at 07:25 UTC on May 05, 2023. It has switched to independent flight mode.

The unmanned freighter Tianzhou-6 launched on May 10, 2022 at 13:22:51.405 UTC from the Wenchang Spacecraft Launch Site and docked to Tiangong at 21:16 UTC. Tianzhou-6 cargo spacecraft carried several cube sats to China Space Station. Among the science payloads were hydrogen fuel cell and tumor 3D model printing and culture.
Tianzhou-6 has a pressurized volume of 22.5 m3, up from 18.1 m3 of previous ships. This is achieved by moving some devices previously mounted in the cargo module to the service module and will enable Tianzhou-6 to deliver about 7.4 tons supply to Tiangong Station, including 70 kg fruits.

Shenzhou-16 launched on May 30, 2023 at 01:31:13.480 UTC and docked at 08:29 UTC with the Chinese space station Tiangong.

The crew of Shenzhou-15 handed over the control of Tiangong to the crew of Shenzhou-16 on June 02, 2023.

Tiangong Expedition 4 concluded with undocking of Shenzhou-15.

EVA data

  Name Start End Duration Mission Airlock Suit
EVA Fei Junlong 09.02.2023, 09:10 UTC 09.02.2023, 16:16 UTC 7h 06m Shenzhou-15 Wentian Feitian-2 a (red)
EVA Zhang Lu 09.02.2023, 09:10 UTC 09.02.2023, 16:16 UTC 7h 06m Shenzhou-15 Wentian Feitian-2 b (blue)

EVA Fei Junlong 28.02.2023, ??:?? UTC 28.02.2023, ??:?? UTC 7h 50m Shenzhou-15 Wentian Feitian-2 a (red)
EVA Zhang Lu 28.02.2023, ??:?? UTC 28.02.2023, ??:?? UTC 7h 50m Shenzhou-15 Wentian Feitian-2 b (blue)

EVA Fei Junlong 30.03.2023, ??:?? UTC 30.03.2023, ??:?? UTC ~7h 30m Shenzhou-15 Wentian Feitian-2 a (red)
EVA Zhang Lu 30.03.2023, ??:?? UTC 30.03.2023, ??:?? UTC ~7h 30m Shenzhou-15 Wentian Feitian-2 a (blue)

EVA Fei Junlong 15.04.2023, ??:?? UTC 15.04.2023, ??:?? UTC ~7h 30m Shenzhou-15 Wentian Feitian-2 a (red)
EVA Zhang Lu 15.04.2023, ??:?? UTC 15.04.2023, ??:?? UTC ~7h 30m Shenzhou-15 Wentian Feitian-2 a (blue)


Photos / Graphics

crew in training crew in training
crew in training crew in training

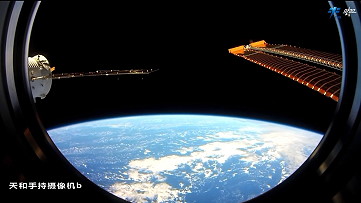

Earth observation Happy New Year

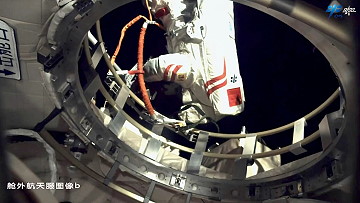

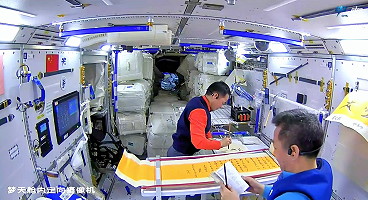

EVA Fei Junlong on February 09, 2023 life onboard Tiangong
Earth observation EVA Fei Junlong and Zhang Lu on March 30, 2023

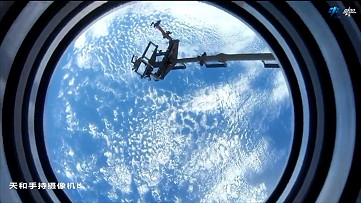

Robotic Arm Crews Shenzhou-15 and 16

onboard photos

more EVA photos



©
